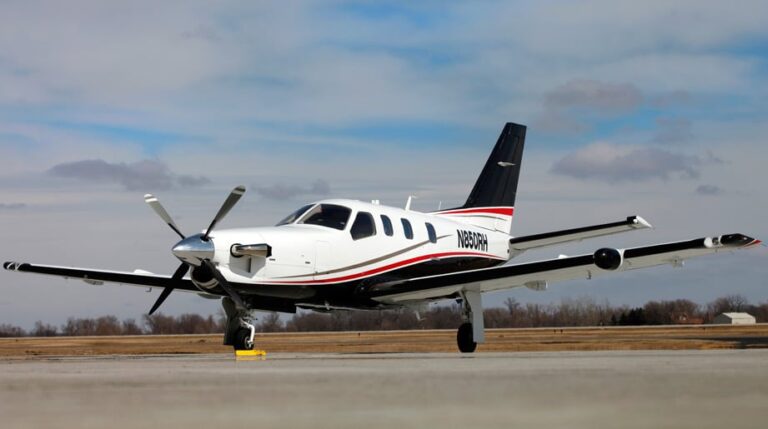

2012 Socata TBM 850

Serial: 603

About this Socata TBM 850 Specs

  • Price$2,695,000
  • Reg No.N850RH
  • Serial603
  • Airframe440 TT
  • Engines440 TT

Watch the Video

Watch the video of this aircraft for sale, the 2012 Socata TBM 850.


Watch Now

Highlights

Engine notes

  • PT6 A66D Pratt & Whitney Canada turboprop engine, developing 1825 SHP thermodynamic, flat rated at 850 SHP
  • Electrically de-iced four bladed HARTZELL constant speed propeller w/ overspeed limiter, full feathering and reverse
  • Polished aluminum spinner cone
  • Oil cooler
  • Anti-icing air inlet with inertial separator
  • Dual exhaust system
  • Service access doors in cowlings

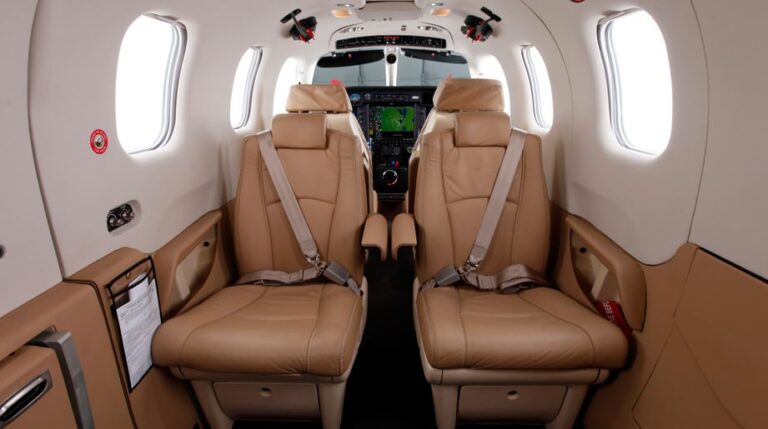

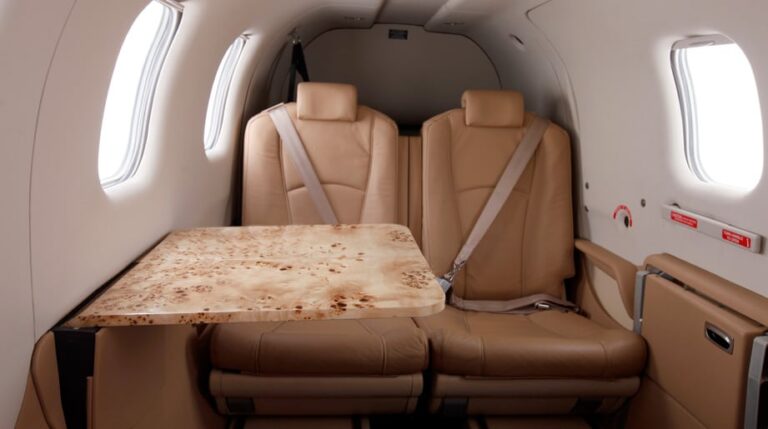

Interior

  • Seat covers: Tan Leather
  • Upper Side Panels: Light Tan
  • Trim: Satin Brass
  • Lower Side Panels: Tan
  • Carpet: Brown
  • Wood: Light Burl
  • Seats Fairing: Light Tan
  • 6 genuine leather seats with adjustable backrests and folding armrests in replacement for fabric
  • Genuine leather upper side panels
  • Aluminum trim on individual fresh-air vents and reading lights

Exterior

  • Top Color A: Pure White
  • Bottom Color B: Graphite Black
  • Trim Color C: Ruby Red
  • Stripe Color D: Gray Metal

Enhancements

  • Additional spare carpet
  • Halon cabin extinguisher
  • Parking protection kit
  • Cabin cover
  • Environment system w/engine driven air-conditioning system
  • RVSM data package
  • GTX 33 Mode S transponder(#2)
  • KRA 405 B Radar Altimeter displayed on GDU 1040s
  • TAWS-B, class B TAWS worldwide database
  • GTS 320 Traffic Advisory System (TAS)
  • KN 63 DME displayed on GDU 1040As (****)
  • Electric pitch and rudder trims on co-pilot control wheel
  • Co-pilot side map light and approach plate holder
  • WX 500 Stormscope displayed on G1000 displays
  • GWX 68 digital four color weather radar – 10″ antenna

Remarks

  • GDL 69 A datalink XM/WX weather and XM audio infotainment
  • Chart view option for GDUs
  • SVT Synthetic Vision
  • Pulse Light Anti-collision System
  • Front and Rear 14V DC Power Outlets
  • Tri-band ELT with GPS Connection
  • Super Sound Proofing Insulation
  • Co-Pilot side lower cabinet

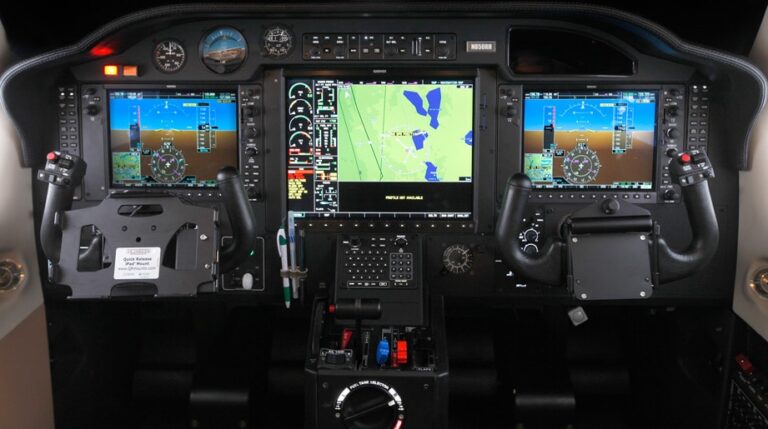

Avionics

  • 2 GMA 1347C Dual digital audio controller with integrated marker beacon receiver, intercom and public address capability on outer side for pilot and co-pilot side.
  • 2 GDU 1040A, 10″ PFD display with three axis flight dynamics, air speed, attitude, vertical speed, HSI w/perspective modes, turn, bank side slip, NAV/COM frequencies indication and AP annunciation
  • 1 GDU 1500 15″ multi-function display with engine (w/optimum TRQ setting display), pressurization, electrical, fuel, flaps and trims indication, Crew Alerting System (CAS), checklist, aircraft synoptics and super large navigation mapping system
  • 2 GIA 63W Nav/Com/ILS/WAAS GPS
  • 2 GEA 71 Engine and airframe interface unit
  • 2 GRS 77 Attitude and Heading Reference System (AHRS)
  • 2 GMU 44 triaxial magnetometer
  • 2 GDC 74B digital air-data computers w/dual probe system
  • 1 GTX33 Mode S transponder
  • 1 GCU 475 remote FMS control panel conveniently located on the central console
  • 1 GMC 710 autopilot mode controller located in upper central panel
  • 4 GSA 81 torque flight servos(yaw, pitch, pitch trim & roll)
  • 1 GTA 82 adapter for yaw auto trim device
  • Backup instrumentation with pneumatic attitude, airspeed and altimeter indicators
