2017 Daher TBM 930

About this Daher TBM 930 Specs

  • PriceCall for Price
  • Reg No.N930EA

New 2017 TBM 930

The TBM 930 offers the latest cockpit technology with the Garmin G3000 avionics suite controlled by the new GTC 580 touch screen controllers. With maximum cruise speed of 330 knots and 1,730 nautical mile range, the TBM 930 gives SUV-type flexibility, while providing sports car like performance.

5 Year/1,000 hr Extended warranty & Care Maintenance program.

Engine: New

330 knot cruise

31,000-ft. reached in 18 minutes, 45 seconds

Highlights

Engine

PT6 A66D Pratt & Whitney Engine turboprop engine developing 1825 SHP thermodynamic, flat rated at 850 SHP

Interior

New! Elite configurable Interior. Socata TBM Black Diamond Edition with Black Onyx Leather seats with red stitching, Flat Black Metal Vents and Lights with Carbon Fiber Table and upper Accent package. Six genuine leather seats with adjustable backrests and folding arm rests. Leather upper cabin side panels in Polynesian Pearl, leather covered lower cabin side panels in Black Onyx and Anthracite wool carpeting. Individual fresh-air vents and reading lights. Baggage compartment with straps and three baggage nets. Fully enclosed lav.

Exterior

Canigou Red over Monescur Black with Socata White lower side and wings and Monescur Black Stripes.

Additional equipment

Enhanced Operational Package:
RVSM data package
GTX 33 Mode S transponder (#2) with Extended Squitter
GRA 55 Radar Altimeter displayed on PFD’s
TAWS-B, class B TAWS worldwide database
GTS 820 Traffic Advisory System (TAS) displayed on MFD and PFD inset map
KN 63 DME displayed on PFD’s
Electric pitch and rudder trims on co-pilot control wheel
Co-pilot side map light and approach plate holder
WX 500 Stormscope displayable on all screens
GWX70 digital four color weather radar – 10” antenna

Miscellaneous

GDL 69 A datalink XM/WX weather information and XM audio infotainment (US Coverage Only)
Chart view option for GDUs
Synthetic Vision Technology displayed PFD’s
GSR56 datalink with satphone through headsets and WX weather information (worldwide coverage – subscription required)

New for 2017

Garmin G3000 Touch Screen Technology Avionics
Garmin Electronic Stability Control (ESP)
Garmin Under Speed Protection (USP)
L3 Flight Data Recorder
Aural Warning System
Garmin Angle of Attack Indicator (AOA)

Avionics

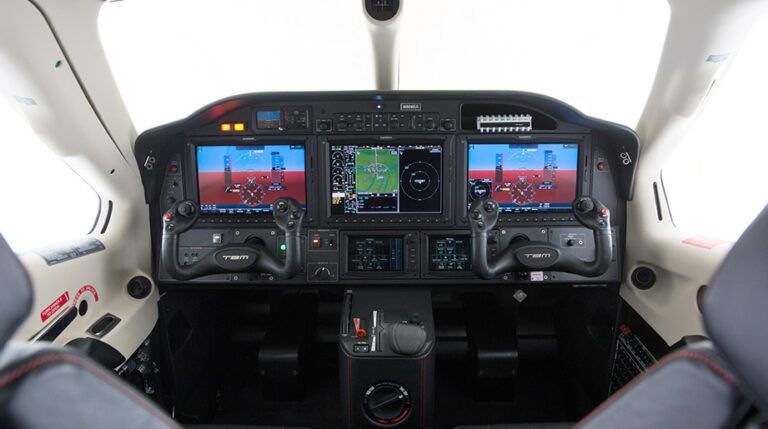

  • Garmin G3000 with touch screen controls
  • 1 GMA 1347C Dual digital audio controller with integrated marker beacon receiver, intercom and public address capability
  • 2 GDU 1200W 12'' Primary Flight Displays
  • 1 GDU 1200W 12'' Multi-Function Display with engine, pressurization, electrical, fuel, flaps and trims indication, Crew Alerting System (CAS), aircraft synoptics and navigation mapping system
  • 2 GIA 63W Nav/Com/ILS/WAAS GPS
  • 2 GIA 63W Nav/Com/ILS/WAAS GPS
  • 2 GRS 77 Attitude and Heading Reference System (AHRS)
  • 2 GMU 44 triaxial magnetometer
  • 2 GDC 74B digital air-data computers w/ dual probe system
  • 1 GTX33 Mode S transponder with Extended Squitter (ES)
  • 2 GTC580 Tactile Controllers located on reclined section of panel
  • 1 GMC 710 autopilot mode controller located in upper central panel
  • 4 GSA 81 torque flight servos (yaw, pitch, pitch trim and roll)
  • 1 GTA 82 adapter for yaw auto trim device
  • 1 MD302 Back up Attitude, Airspeed, Altitude digital display
  • AOA – Angle of Attack Sensor, Computer and displays on PFD’s
  • ESP – Electronic Stability Protection with AOA connection for Underspeed Protection
  • FDR – Flight Data Recorder
  • Aural Warning System
  • Airframe de-icing control panel
  • Inertial separator control
  • Parking brake control
  • Landing gear control panel
  • Electric generation controls and monitoring on overhead panel
  • Advisory panel displayed on GDU 1200W master caution warning & alerts warning
  • Cabin temperature control (dual zone, with override capability)
  • Heated stall warning system
  • Digital chronometer displayed on GDU 1040s
  • Flight time hourmeter
  • Instrument panel lighting, CB dedicated switch lightning
  • 2 Bose Headsets
