2016 Daher TBM 930

Serial: 1137

About this Daher TBM 930 Specs

  • PriceCall for Price
  • Reg No.N930H
  • Serial1137
  • Airframe290
  • Engines290

2016 TBM 930 – Serial Number 1137

The TBM 930 offers the latest cockpit technology with the Garmin G3000 avionics suite controlled by the new GTC 580 touch screen controllers. With maximum cruise speed of 330 knots and 1,730 nautical mile range.

330 knot cruise

31,000-ft. reached in 18 minutes, 45 seconds

Contact Download Spec Sheet Watch Video

Watch the Video

Watch the video of this aircraft for sale, the 2016 Daher TBM 930.


Watch Now

Highlights

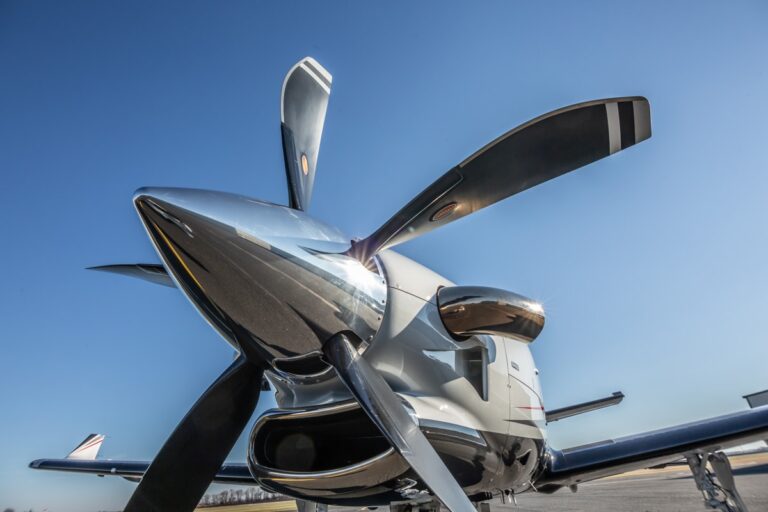

Engine

PT6 A66D Pratt & Whitney Engine turboprop engine developing 1825 SHP thermodynamic, flat rated at 850 SHP

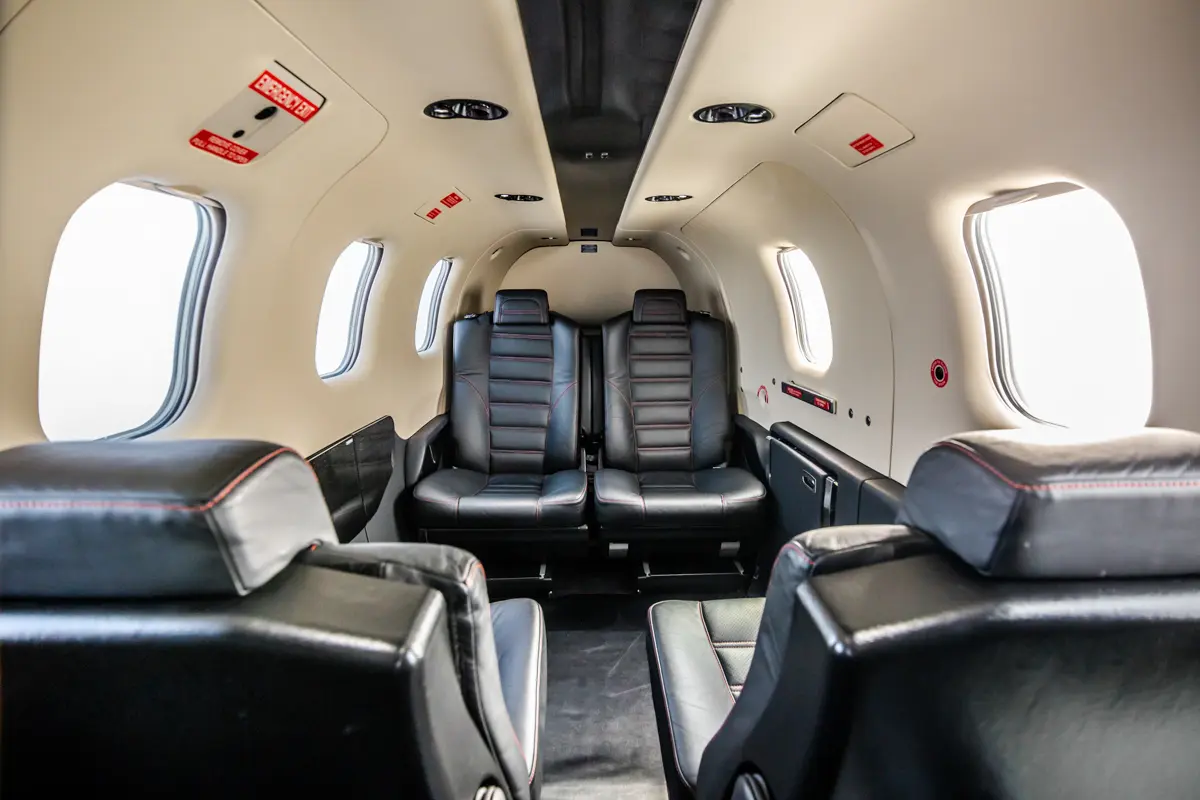

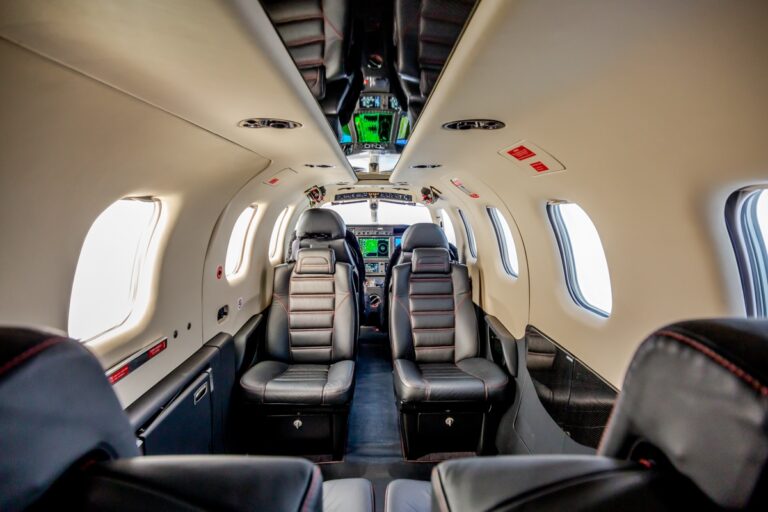

Interior

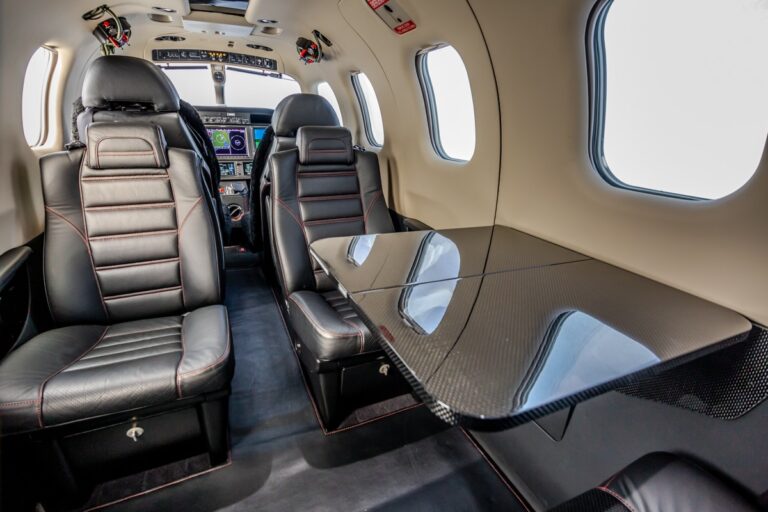

Elite configurable Interior. Socata TBM Black Diamond Edition with Black Onyx Leather seats with red stitching, Flat Black Metal Vents and Lights with Carbon Fiber Table and upper Accent package. Six genuine leather seats with adjustable backrests and folding arm rests. Leather upper cabin side panels in Polynesian Pearl, leather covered lower cabin side panels in Black Onyx and Anthracite wool carpeting. Individual fresh-air vents and reading lights. Baggage compartment with straps and three baggage nets. Fully enclosed lav.

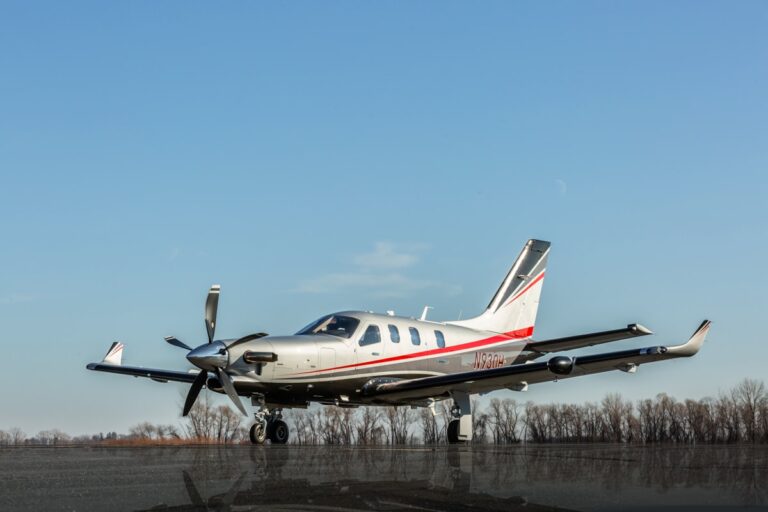

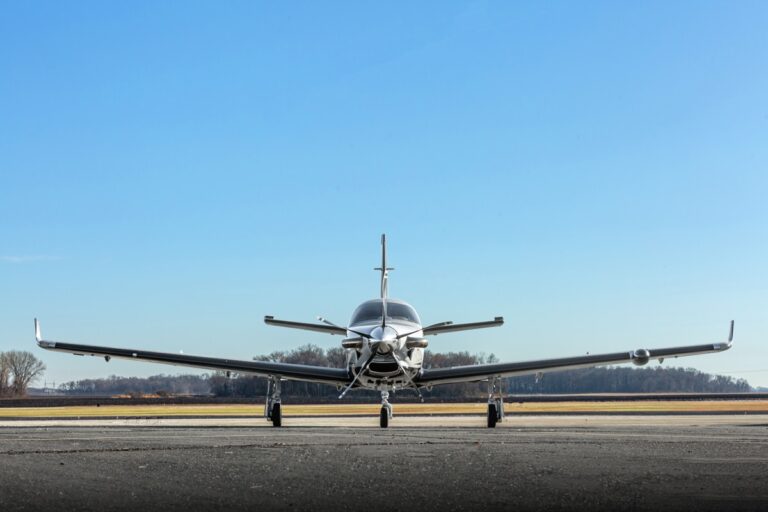

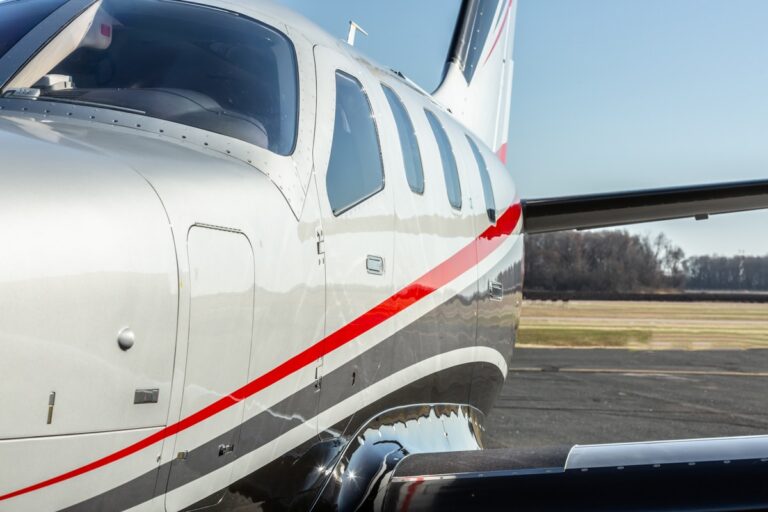

Exterior

Overall silver over Monescur Black lower with red and dark grey lower side stripes and wings in silver.

Additional Equipment

Enhanced Operational Package:
RVSM data package
GTX 33 Mode S transponder (#2) with Extended Squitter
GRA 55 Radar Altimeter displayed on PFD’s
TAWS-B, class B TAWS worldwide database
GTS 820 Traffic Advisory System (TAS) displayed on MFD and PFD inset map
KN 63 DME displayed on PFD’s
Electric pitch and rudder trims on co-pilot control wheel
Co-pilot side map light and approach plate holder
WX 500 Stormscope displayable on all screens
GWX70 digital four color weather radar – 10” antenna

Miscellaneous

GDL 69 A datalink XM/WX weather information and XM audio infotainment (US Coverage Only)
Chart view option for GDUs
Synthetic Vision Technology displayed PFD’s
GSR56 datalink with satphone through headsets and WX weather information (worldwide coverage – subscription required)

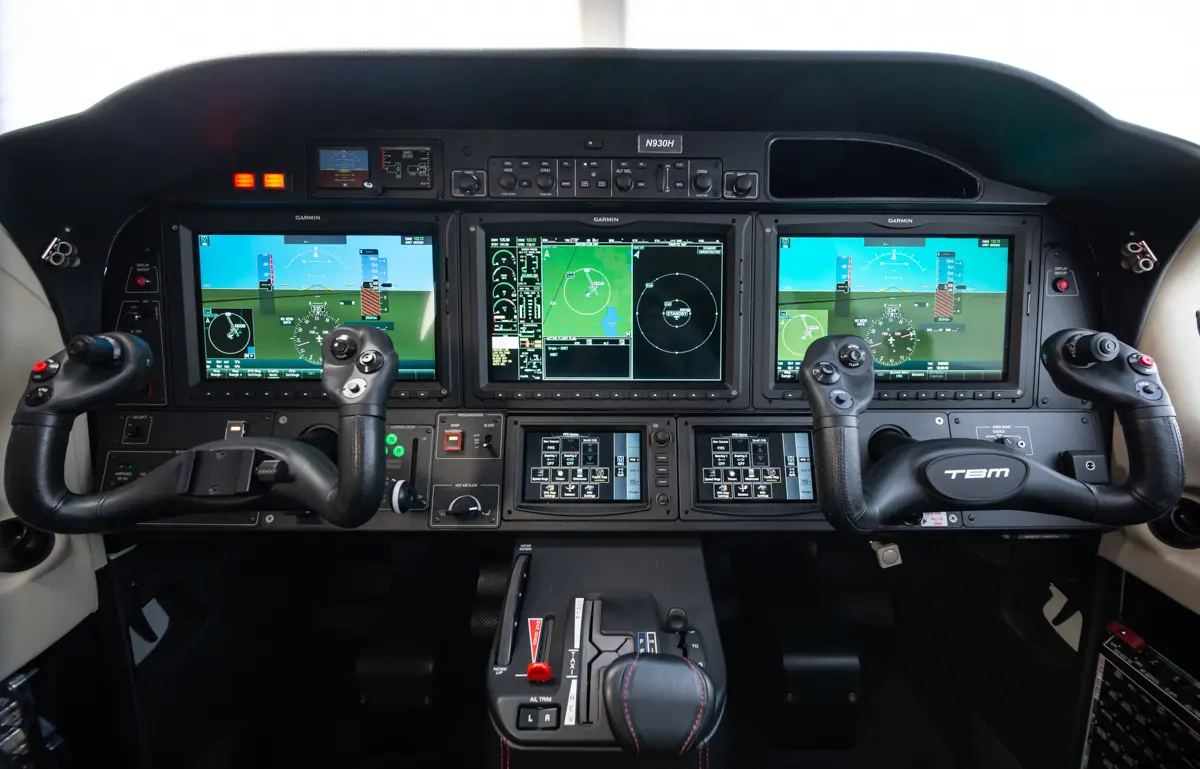

Avionics

  • Garmin G3000 with touch screen controls
  • 1 GMA 36 audio controller with integrated marker beacon receiver, intercom and public address capability
  • 2 GDU 1200W 12'' Primary Flight Displays
  • 1 GDU 1200W 12'' Multi-Function Display with engine, pressurization, electrical, fuel, flaps and trims indication, Crew Alerting System (CAS), aircraft synoptics and navigation mapping system
  • 2 GIA 63W Nav/Com/ILS/WAAS GPS
  • 2 GEA 71 Engine and airframe interface unit
  • 2 GRS 77 Attitude and Heading Reference System (AHRS)
  • 2 GMU 44 triaxial magnetometer
  • 2 GDC 74B digital air-data computers w/ dual probe system
  • 1 GTX345 Mode S transponder with Extended Squitter (#1)
  • 2 GTC580 Tactile Controllers located on reclined section of panel
  • 1 GMC 710 autopilot mode controller located in upper central panel
  • 4 GSA 81 torque flight servos (yaw, pitch, pitch trim and roll)
  • 1 GTA 82 adapter for yaw auto trim device
  • 1 MD302 Back up Attitude, Airspeed, Altitude digital display
  • ESP – Electronic Stability Protection with AOA connection for Underspeed Protection
  • 2 Bose Headsets
  • Stick Shaker
  • Voice Warning System
  • GDL 69 A SXM Data Link Weather information and XM audio infotainment (US coverage only)
  • Chart View opion for GDUs
  • Synthetic Vision Technology to be displayed on both of PFD GDU1200W
  • GSR56 datalink with satphone through headsets ans WX weather information (worldwide coverage- subscription required)
