2025 Daher TBM 960

Serial: TBD

About this Daher TBM 960 Specs

  • PriceCall for Price
  • Reg No.TBD
  • SerialTBD
  • AirframeNew
  • EnginesNew

New 2025 TBM 960

The TBM 960 offers the latest cockpit technology with the Garmin G3000 avionics suite controlled by the new GTC 580 touchscreen controllers. The TBM 960 features enhancements over the 930 like Auto Throttle, Automatic Ice Detection and activation, new interior design, and Ground Suppression Garmin Radar. The TBM 960 has a maximum cruise speed of 330 knots and 1,730 nautical mile range.

  • •Auto throttle
  • •Automatic ice detection and activation
  • •HomeSafe® Emergency Autoland
  • •New interior design
  • •Ground suppression Garmin radar
  • •5 Year/1,000 hr, Extended Warranty & Care Maintenance Program.
  • •330-knot cruise
  • •31,000-ft. reached in 18 minutes, 45 seconds



  • •Metal structure and skin panelling
  • •Carbon fiber engine cowling and winglets
  • •Anti-corrosion protection treatment
  • •Retractable gear with electrohydraulic actuation
  • •Hydraulic disc brakes
  • •Pressurized 6 seats cabin (6.2 psi) and baggage compartment
  • •Sound proofing and thermal insulation
  • •Pilot Access Door
  • •Large access door with retractable stairway
  • •Emergency exit
  • •Front storage compartment (not pressurized) with lockable access door
  • •Easy maintenance access doors
  • •Wing Tie-down attachments
  • •Jacking points
  • •Gaseous oxygen system for 6 seats and quick donning masks with Smart Mike for pilot & copilot


  • •PT6 A66D Pratt & Whitney Canada turboprop engine developing 1825 SHP thermodynamic, flat rated at 850 SHP propeller with overspeed limiter, full feathering and reverse
  • •Oil cooler
  • •Anti-icing air inlet with inertial separator without operational limitation
  • •Dual polished exhaust system aerodynamically optimized
  • •Service access doors in cowlings
  • •Dual engine Chip detector indication on flight display
  • •Flight Data Acquisition Storage and Transmission System (FAST)


  • •Full composite electrically de-iced five bladed Hartzell constant speed
  • •Polished aluminum spinner cone


  • •Dual flight controls, leather covered. Control wheel with 8 integrated functions, (Push to talk, Autopilot, CWS (control wheel stering), electric pitch and yaw trim, Transponder ident, Comm 2 frequency Changer , Stormscope, Timer)
  • •Elevator, rudder and aileron electric trim
  • •Electrical pre-select flaps with integrated asymmetry detection system

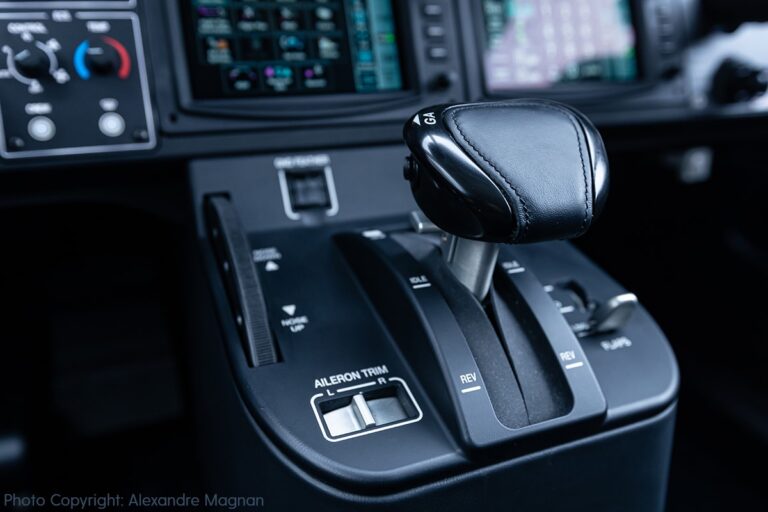

  • •Central console including: – Single lever power control featuring autothrottle associated with engine smart single gauge, with bleed inhibition in low idle condition electric flap control, fuel selector, manual pitch trim, ailerons electric trim – manuel override control
  • •Adjustable rudder pedals
  • •Landing gear handle
  • •Dual toe brakes – Parking brake
  • •Landing gear emergency extension handle
  • •Automatic environment and pressurization control system with max diff mode
  • •Alternate static source control
  • •Alternate ram air source control

Fuel equipment

  • •One structural fuel tank per wing
  • •Engine driven fuel pump
  • •Standby electrical fuel pump and low pressure switch/ indication
  • •Fuel tank selector with automatic fuel tank sequencer unit
  • •Capacitive fuel gauges with low fuel level warning system

Ice protection

  • •Pneumatically deiced wing and tail unit
  • •Heated engine air intake lip
  • •Pilot controlled engine inertial separator
  • •Electrically heated propeller blades
  • •Electrically heated pitot tubes
  • •Electrically deiced stall warning sensor
  • •Pilot & Co-pilot electrically heated windshields – Ice detector light

Electrical equipment

  • •Automatic starter generator transition during start
  • •Lead acid battery 24V – 42 A.h
  • •Starter generator 28V – 300 Amp
  • •Standby generator 28 V – 100 Amp
  • •Electrical power control center
  • •Circuit breakers
  • •Anticollision strobe lights – Led Beacon on ground (Winglets & tail)
  • •Navigation lights – Taxiing and landing LED lights
  • •LED ice detection light
  • •Ground power plug – Ground clearance energy saver
  • •Tri-band ELT with GPS connection
  • •14 V port in passenger cabin + 7 high-power USB charging ports +115V universal port

Premium edition fittings included

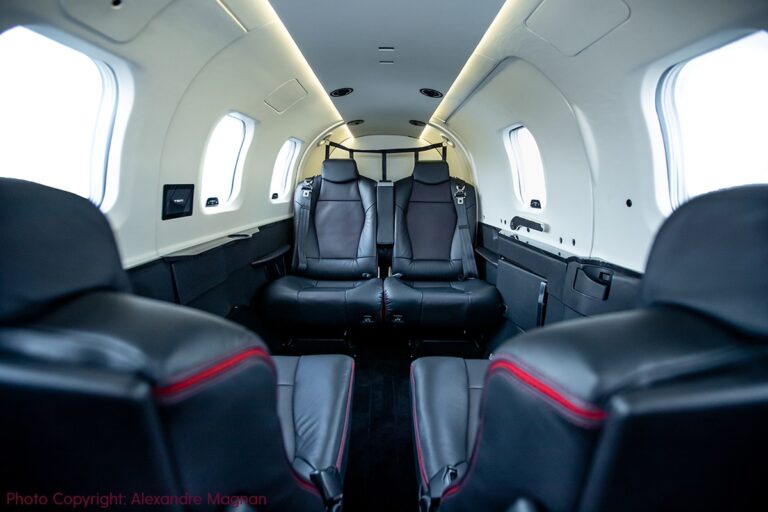

  • •6 leather heated seats with adjustable backrests, folding armrests and intermediate seats with forward or backward accommodation with multiple installation configuration
  • •Side beam seat Polished Aluminum finish
  • •Fully adjustable (3-axis) pilot and co-pilot seats and adjustable rudder pedals
  • •Cabin accommodation capable of 4 seats layout includes 2 nets for luggage load
  • •Leather upper cabin side panels, leather covered lower cabin side panels, wool carpeting
  • •Individual fresh-air vents and reading lights
  • •Pilot and co-pilot sun visors
  • •Ship-powered headset jacks for each seat (Bose Lemo plugs) and on instrument panel
  • •Baggage compartment with straps and baggage net
  • •Halon cabin fire extinguisher
  • •Parking protection kit – Windshield cover
  • •Environment system with engine driven air-conditioning system (VCS)
  • •Cockpit and Cabin Cupholders
  • •Coat Hanger
  • •Cabin foldable tablet


  • Garmin G3000 Avionics System
  • 1 GMA 36B Audio controller with Bluetooth audio link and integrated marker beacon receiver, intercom and public address capability
  • 2 GDU 1250W, 12'' WUXGA high resolution PFD Primary Flight Displays

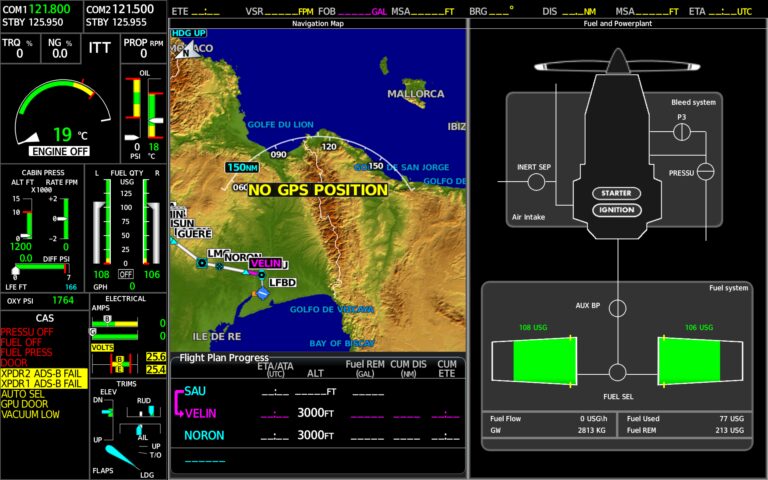

  • 1 GDU 1250W, 12" WUXGA high resolution MFD Multi-Function Display with engine, pressurization, electrical, fuel, flaps and trims indication, Crew Alerting System (CAS), checklist capability, aircraft synoptics and navigation mapping system
  • 2 GIA 64W Nav/Com/ILS/WAAS GPS
  • 2 GEA 71B Engine and airframe interface unit
  • 2 GRS 79 Attitude and Heading Reference System (AHRS)
  • 2 GMU 44 triaxial magnetometer
  • 2 GDC 72B digital air-data computers w/ dual probe system
  • 2 GTX 345 Mode S Extended Squitter transponder (#1) ADS-B In & out
  • 2 GTC 580 Tactile Controllers conveniently located on the reclined section of the panel
  • 1 GMC 711 AT autopilot and autothrottle mode controller located in upper central panel
  • 4 GSA 81 torque flight servos (yaw, pitch, pitch trim and roll)
  • 1 GSA 87 Servo actuator for Autothrottle
  • 1 GTA 82 adapter for yaw auto trim device
  • MD302 Back up Attitude, Airspeed, Altitude and heading digital display, 2 screens instrument with MD32 remote magnetometer
  • LPV, LNAV/VNAV (including Baro VNAV) approaches support and advisory vertical guidance for LP, LNAV and Visual approaches
  • ESP Electronic Stability and underspeed Protection
  • AOA/stall indicator and Stick shaker based on heated probe
  • Smooth transition from barometric VNAV to Glideslope/path
  • Surface Watch® for airport environment awareness
  • Auto-Ice protection system with ice detection sensor
  • LVL Level button to roll level and hold altitude
  • EDM Emergency Descent Mode
  • 1 Flightstream FS510 Bluetooth/Wifi allowing Tablet to Avionics secured exchange information channel
  • Airframe de-icing control panel
  • Inertial separator control
  • Landing gear control panel
  • Electric generation controls and monitoring on overhead panel
  • Dedicated master warning and caution for Crew Alerting System message acknowledgement
  • Voice Alert System
  • Cabin temperature control (dual zone, with over ride capability)
  • Heated stall warning system
  • Digital chronometer displayed on GDU
  • Digital Flight time hourmeter
  • Instrument panel lighting, CB dedicated switch lighting
  • 6 Bose Headsets
  • Flight Data Recorder
  • RVSM Package
  • Garmin GTS 820 Traffic Advisory System
  • WX 500 Stormscope
  • Garmin GWX 70 Four Color Radar with with Turbulence detection and Ground Suppression
  • Garmin GDL69 XM Data link weather and XM music
  • Jeppesen Chart View
  • Synthetic Vision
  • GSR56 Integrated Data Link Sat Phone for Text and Talk
  • HomeSafe® Emergency Autoland
